164533-4 | AMP

D-Sub socket, 25 pole, standard, unequipped, straight, crimp connection, 164533-4

Order No.: 55F412
EAN: 4099889806724
MPN:
164533-4
0-0164533-4
Series: AMPLIMITE

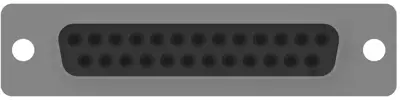

164533-4 AMP D-Sub Connectors Image 1

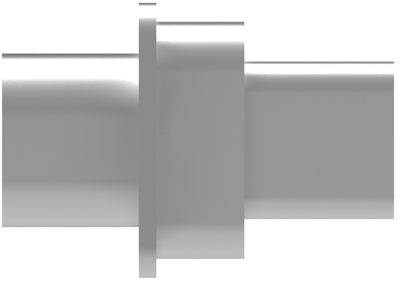

164533-4 AMP D-Sub Connectors Image 2

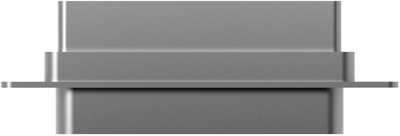

164533-4 AMP D-Sub Connectors Image 3

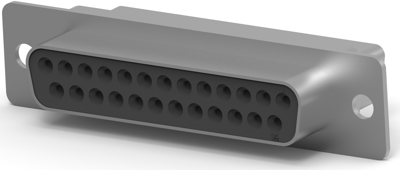

164533-4 AMP D-Sub Connectors Image 4

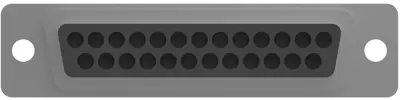

164533-4 AMP D-Sub Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.6779 € *
Available: 190 pcs.
Total Price:
1.68 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6779 €
10 pcs.
1.5232 €
50 pcs.
1.4518 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale

Bare sub-D connector, type TE Connectivity/AMP HDP-20.

For insertion of male or female contacts. Tinned steel housing; Insulator: black glass fiber-reinforced nylon compliant with UL 94 V-0. Rated current: 7.5 A. Dimension B: 9 to 37-pole/50-pole 8.3/11.1 mm. Dimension G: 9 to 37-pole/50-pole 12.5/15.4 mm. Dimension H: 9 to 37-pole/50-pole 10.7/13.5 mm.

Female connector elements, type 0-0164.

Technical attributes (type, number of poles, dimensions A, C, D): 533-4, 25-pole, A 38.4, C 47.0, D 53.0 mm

Technical specifications
Filter Property Value
Contact connection crimp connection
Assembly straight
Pole image standard
Attachment (rear panel) through hole
Additional parts unequipped
Grid 2.74 mm
Pin number 25 pole
Version socket header
Type of locking through hole
Logistics
Property Value
Customs tariff number 85472000
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
