164532-4 | AMP

D-Sub socket, 15 pole, standard, unequipped, straight, crimp connection, 164532-4

Order No.: 55F411
EAN: 4099889806694
MPN:
164532-4
0-0164532-4
Series: AMPLIMITE

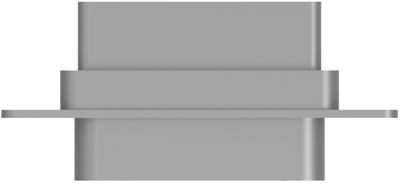

164532-4 AMP D-Sub Connectors Image 1

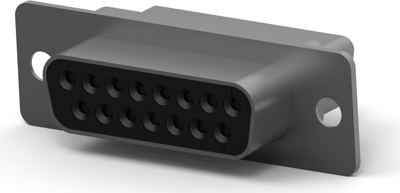

164532-4 AMP D-Sub Connectors Image 2

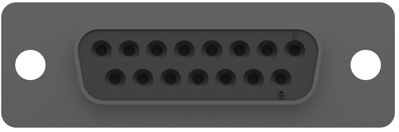

164532-4 AMP D-Sub Connectors Image 3

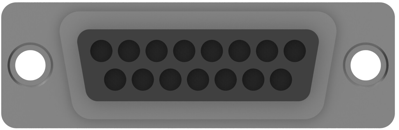

164532-4 AMP D-Sub Connectors Image 4

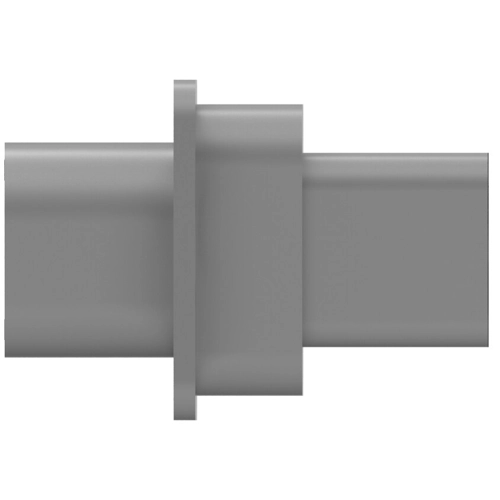

164532-4 AMP D-Sub Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.3800 € *
Available: 128 pcs.
Available in 5 Days: 2,653 pcs. - if ordered today
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
25 pcs.
2.0111 €
100 pcs.
1.8326 €
250 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

Bare sub-D connector, type TE Connectivity/AMP HDP-20.

For insertion of male or female contacts. Tinned steel housing; Insulator: black glass fiber-reinforced nylon compliant with UL 94 V-0. Rated current: 7.5 A. Dimension B: 9 to 37-pole/50-pole 8.3/11.1 mm. Dimension G: 9 to 37-pole/50-pole 12.5/15.4 mm. Dimension H: 9 to 37-pole/50-pole 10.7/13.5 mm.

Female connector elements, type 0-0164.

Technical attributes (type, number of poles, dimensions A, C, D): 532-4, 15-pole, A 24.7, C 33.3, D 39.1 mm

Technical specifications
Filter Property Value
Assembly straight
Attachment (rear panel) through hole
Additional parts unequipped
Version socket header
Grid 2.74 mm
Type of locking through hole
Contact connection crimp connection
Pin number 15 pole
Pole image standard
Logistics
Property Value
Country of origin PL
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
