1-745497-5 | AMP
D-Sub socket, 37 pole, standard, equipped, straight, IDC connection, 1-745497-5
Unit Price (€ / pc.)
18.6711 € *
Available in 5 Days: 2,170 pcs. - if ordered today
Total Price:
18.67 € *
Price list
Quantity
Price per unit*
1 pcs.
18.6711 €
5 pcs.
17.7072 €
10 pcs.
16.5648 €
25 pcs.
15.1011 €
*incl. VAT plus shipping costs
Subject to prior sale

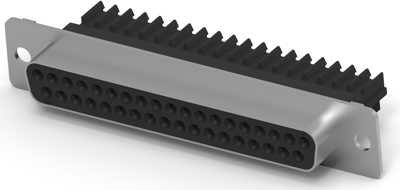

D-Sub socket, 1-745497-5, AMP
IDC D-Sub Connector, Receptacle, 26 – 22 AWG solid wire size, Shielded, Wire-to-Wire, 37 Position, 1.38 mm Centerline, 2 Row.
Features
- Insulation displacement contacts preloaded in housing
- No wire stripping
- Post plated contacts with no bare edges
- Patented contact ensures reliable termination of a wide range of wire sizes and insulation diameters
Applications
- Industrial machinery
- Medical instrumentation
- Computers and peripherals
- RAID storage arrays
- On-machine industrial communications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.38 mm | |
| Contact connection | IDC connection | |
| Pole image | standard | |
| Assembly | straight | |
| Type of locking | through hole | |
| Pin number | 37 pole | |
| Additional parts | equipped | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
