1-5229913-1 | AMP

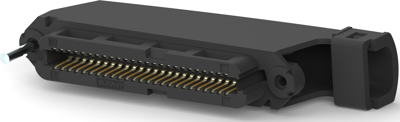

D-Sub socket, 50 pole, standard, equipped, straight, IDC connection, 1-5229913-1
Order No.: 37P2935
EAN: 4099889787573
MPN:
1-5229913-1
Unit Price (€ / pc.)
18.5164 € *
Available in 5 Days: 794 pcs. - if ordered today
Total Price:
18.52 € *
Price list
Quantity
Price per unit*
1 pcs.
18.5164 €
5 pcs.
17.5644 €
10 pcs.
16.4339 €
25 pcs.
14.9821 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 1-5229913-1, AMP
IDC D-Sub Connector, Receptacle, 26 – 24 AWG solid wire size, 0.13 – 0.32 mm² solid wire size, 24 AWG stranded wire.
Features
- Unsealable
- Shielded
- Contact base material: Copper alloy
- With protective cover
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Version | socket header | |
| Contact connection | IDC connection | |
| Pin number | 50 pole | |
| Grid | 2.16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
