1-106507-2 | AMP

D-Sub socket, 25 pole, standard, equipped, angled, solder pin, 1-106507-2

Order No.: 55F4774
EAN: 4099889807004
MPN:
1-106507-2
1-0106507-2
Series: AMPLIMITE

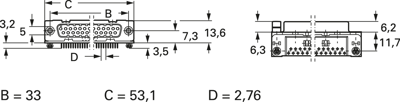

1-106507-2 AMP D-Sub Connectors Image 1
1-106507-2 AMP D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.2820 € *
Available in 5 Days: 1,607 pcs. - if ordered today
Total Price:
9.28 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2820 €
10 pcs.
8.5442 €
50 pcs.
7.7707 €
100 pcs.
6.9972 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 1-106507-2, AMP

PCB D-Sub Connector, Receptacle, Cable-to-Board, 25 Position, 2.77 mm Centerline, 2 Row, Size 3, Round, Standard Profile.

Features

  • Preloaded: Yes
  • Insert flammability rating UL 94V-0
  • Without grounding clips
  • Performance level: 2

Applications

  • For signal applications
Technical specifications
Filter Property Value
Assembly angled
Version socket header
Pole image standard
Type of locking threaded bolts 4-40 UNC
Contact connection solder pin
Performance level 2
Pin number 25 pole
Additional parts equipped
Attachment (rear panel) metal bracket with PCB locking
Grid 2.77 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
