1-106506-2 | AMP

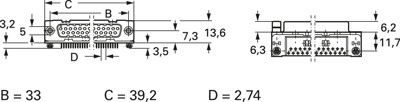

D-Sub socket, 15 pole, standard, equipped, angled, solder pin, 1-106506-2
Unit Price (€ / pc.)
5.6763 € *
Available: 21 pcs.
Available in 5 Days: 2,390 pcs. - if ordered today
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6763 €
10 pcs.
5.2717 €
25 pcs.
4.9147 €
50 pcs.
4.4744 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 1-106506-2, AMP
PCB D-Sub Connector, Receptacle, Cable-to-Board, 15 Position, 2.74 mm Centerline, 2 Row, Size 2, Round, Standard Profile.
Features
- Preloaded: Yes
- Insert flammability rating UL 94V-0
- Without grounding clips
- Performance level: 2
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.74 mm | |
| Contact connection | solder pin | |
| Attachment (rear panel) | metal bracket with PCB locking | |
| Performance level | 2 | |
| Pole image | standard | |
| Assembly | angled | |
| Type of locking | threaded bolts 4-40 UNC | |
| Pin number | 15 pole | |
| Additional parts | equipped | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
