58246-1 | AMP
Terminating head for rectangular contacts, AWG 28-22, AMP 58246-1
Order No.: 35P7778
EAN: 4099891357306
MPN:
58246-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
551.3508 € *
Available in 12 Days: 8 pcs. - if ordered today

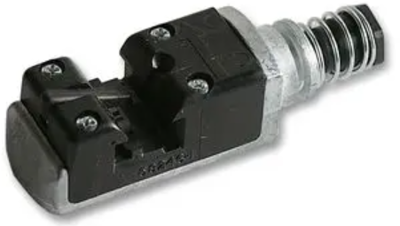

Terminating head, 58246-1, AMP
This terminating head is designed to terminate discrete wire in MTA-100 IDC closed-end receptacle connectors with lock (ramp) and with lock and polarizing tabs. Slotted contacts for insulation displacement termination are pre-assembled on 2.54 mm centerlines in each color-coded housing for a specific wire size.
The head must be installed in pistol grip manual handle assembly or pistol grip pneumatic handle assembly.
Features
- Wire Inserter
- Adjuster (Insertion Rod)
- Feed Slide
- Locating Pawl
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | rectangular contacts | |
| Crimping Range (AWG) | AWG 28-22 | |
| Weight | 140 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82055980 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Electrical equipment take-back |  |
