969022-1 | AMP

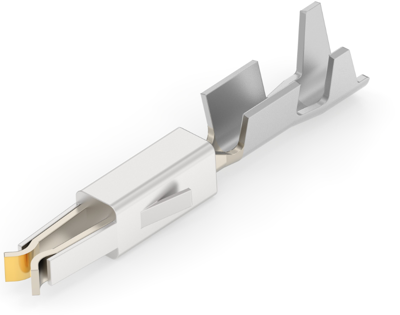

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, gold-plated, 969022-1
Order No.: 36P3326
EAN: 4099889644432
MPN:
969022-1
0-0969022-1
Unit Price (€ / pc.)
0.2130 € *
Standard delivery time from the manufacturer is: 23 Weeks
Contacts for motor vehicles, 969022-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, Wire Insulation Diameter: 1.3 - 2.1 mm, 140 °C, Operating Temperature Range: -40 - 140 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-17 | |
| Contact material | tin | |
| Cable cross-section | 0.5-1.0 mm² | |
| Insulation diameter | 1.3-2.1 mm | |
| contact surface | gold-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
| Original Packaging | Reel with 6,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
