969005-2 | AMP

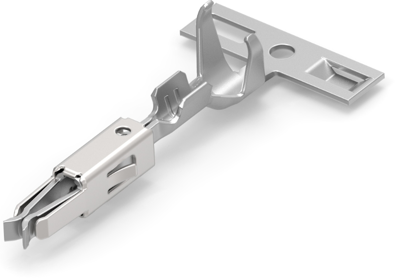

Receptacle, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 969005-2
Order No.: 36P3306
EAN: 4099889644258
MPN:
969005-2
Unit Price (€ / pc.)
0.1190 € *
Available: 0 pcs.
Available in 5 Days: 13,500 pcs.
Leadtime: 18 Weeks **
Total Price:
535.50 € *
Price list
Quantity
Price per unit*
4500 pcs.
0.1190 €
9000 pcs.
0.1166 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 969005-2, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.2 - 0.5 mm², Wire Size Search: 0.2 mm², 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, 23 AWG, Wire Insulation Diameter: 2.6 mm, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 2,6 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupfer-Eisen-Legierung | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,2-0,5 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
