965927-1 | AMP

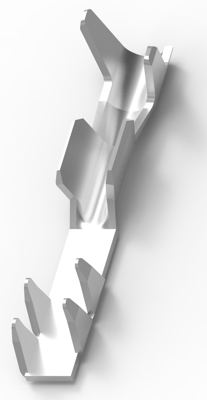

Receptacle, 0.2-0.5 mm², AWG 24-20, crimp connection, tin-plated, 965927-1
Order No.: 36P2253
EAN: 4099889643558
MPN:
965927-1
Unit Price (€ / pc.)
0.1321 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Total Price:
3,698.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
28000 pcs.
0.1321 €
Splice for wire and FFC, 965927-1, AMP
Barrel Style: Crimp, Sealable: No, Splice Type: Cable Splice, Serrated: Yes, Wire Insulation Support Retention Type: Insulation Support, Number of Serrations: 3, Compatible With Wire & Cable Type: FFC, Operating Voltage: 300 V, Plating Material: Tin, Splice Features: Serrated, Primary Product Material: Copper Alloy, Primary Product Color: None, Barrel Type: Open, Wire Insulation Support: With, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.5 mm², Accepts Wire Insulation Diameter Range: 1.15 - 1.6 mm, Wire Size: 404 - 1022 CMA, Overall Product Length: 12.3 mm, Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1,15-1,6 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,2-0,5 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369001 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
