964274-2 | AMP

Name: Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 964274-2
Brand: AMP
SKU: 36P3308
Availability: InStock

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 964274-2

Order No.: 36P3308

EAN: 4099889644272

MPN:

964274-2

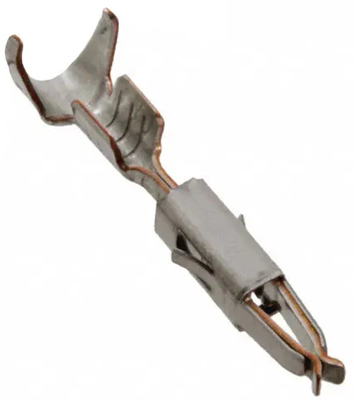

Image may differ

Key Specification:

Version receptacle

Cable cross-section 0.5-1.0 mm²

AWG cross-section AWG 20-17

Contact connection crimp connection

Contact material copper-iron alloy

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0940 € *

Available in 5 Days: 48,000 pcs. - if ordered today

Total Price:

376.04 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Socket contact, 964274-2, AMP

Sealable: Yes, Primary Locking Feature: Locking Lance, Terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 20 - 17 AWG, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 1.4 - 2.1 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 120 °C, Compatible With Wire Base Material: Copper.

Technical specifications

Filter	Property	Value
	Version	receptacle
	Contact connection	crimp connection
	Insulation diameter	1.4-2.1 mm
	AWG cross-section	AWG 20-17
	Contact surface Connection range	tin-plated
	Cable cross-section	0.5-1.0 mm²
	contact surface	tin-plated
	Contact material	copper-iron alloy
