964273-2 | AMP
Receptacle, 1.0-2.5 mm², AWG 17-13, crimp connection, tin-plated, 964273-2
Order No.: 36P3424
EAN: 4099889645057
MPN:
964273-2
Unit Price (€ / pc.)
0.2451 € *
Available: 920 pcs.
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2451 €
10 pcs.
0.2273 €
25 pcs.
0.2118 €
50 pcs.
0.1916 €
*incl. VAT plus shipping costs
Subject to prior sale

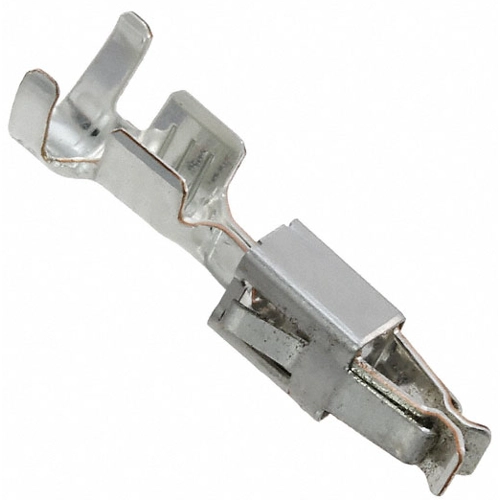

Socket contact, 964273-2, TE Connectivity
Sealable: Yes, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 1 - 2.5 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², 2.5 mm², Wire Insulation Diameter: 2.2 - 3 mm,3.4 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 17-13 | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 1.0-2.5 mm² | |
| Insulation diameter | 2.2-3.4 mm | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 3,500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
