964270-2 | AMP
Tab, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 964270-2
Order No.: 36P3346
EAN: 4099889644524
MPN:
964270-2
This item is no longer available.
As an alternative, we recommend the following item:

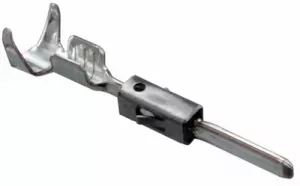

Tab, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 964269-2
Order No.: 36P3357
Manufacturer: AMP
per pc. 0.1880 € *
Crimp pin contact, 964270-2, AMP
MCP 1.5K 1.6 x 0.6 mm tab-timer contact with single wire sealing system (SWS) and modified symmetrical stainless steel cantilever spring. These MCP 1.5K Tab-Timer contact have a 1.60 x 0.61mm connector interface area and fit into the MCP 1.5K contact system. They can also be used in the heavy duty sealed connector series (HDSCS) and Micro Timer II connector systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-17 | |
| Contact material | copper-iron alloy | |
| Cable cross-section | 0.5-1.0 mm² | |
| Insulation diameter | 1.4-2.1 mm | |
| contact surface | tin-plated | |
| Version | tab | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
