964269-2 | AMP

Tab, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 964269-2

Order No.: 36P3357
EAN: 4099889644579
MPN:
964269-2

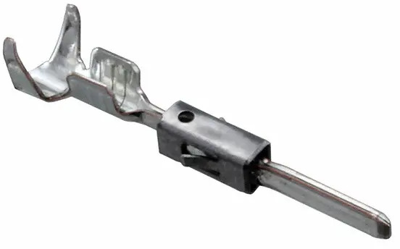

964269-2 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.1964 € *
Available: 1,550 pcs.
Available in 5 Days: 4,000 pcs. - if ordered today
Total Price:
19.64 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1964 €
250 pcs.
0.1809 €
500 pcs.
0.1678 €
1000 pcs.
0.1511 €
*incl. VAT plus shipping costs
Subject to prior sale

Tab contact, 964269-2, AMP

Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal Type: Tab, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 20 - 17 AWG, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 1.4 - 2.1 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 130 °C, Compatible With Wire Base Material: Copper.

Technical specifications
Filter Property Value
contact surface tin-plated
AWG cross-section AWG 20-17
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 0.5-1.0 mm²
Version tab
Contact material copper-iron alloy
Insulation diameter 1.4-2.1 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Original Packaging Reel with 4,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
