964263-2 | AMP

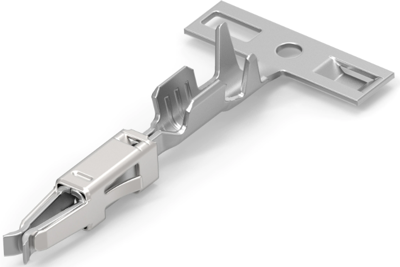

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 964263-2
Order No.: 36P3303
EAN: 4099889644234
MPN:
964263-2
Unit Price (€ / pc.)
0.1035 € *
Available: 0 pcs.
Available in 5 Days: 12,000 pcs.
Leadtime: 30 Weeks **
Total Price:
621.18 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.1035 €
12000 pcs.
0.0988 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 964263-2, AMP
Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.6 mm, Mating Tab Thickness: .6 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, Wire Insulation Diameter: 1.4 - 2.1 mm,120 °C, Operating Temperature Range: -40 - 120 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 20-17 | |
| Insulation diameter | 1,4-2,1 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupfer-Eisen-Legierung | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,5-1,0 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
