963904-2 | AMP

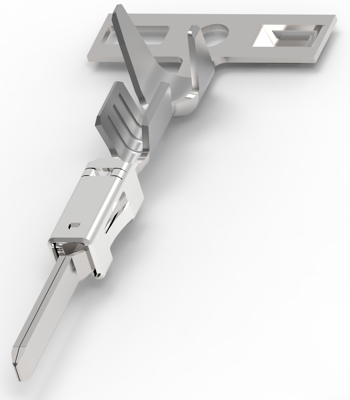

Tab, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 963904-2
Order No.: 36P3298
EAN: 4099889644203
MPN:
963904-2
Unit Price (€ / pc.)
0.1333 € *
Standard delivery time from the manufacturer is: 18 Weeks
Pin contact, 963904-2, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Wire Type: Copper, Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 20 - 18 AWG, Wire Size: 0.5 - 1 mm², Wire Size Search: 17 AWG, 18 AWG, 20 AWG, Wire Size Search: 0.5 mm²,0.75 mm²,0.85 mm²,1 mm², Wire Insulation Diameter: 1.4 - 2.1 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| AWG cross-section | AWG 20-17 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.5-1.0 mm² | |
| Version | tab | |
| Contact material | copper-iron alloy | |
| Insulation diameter | 1.4-2.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
