963904-1 | AMP

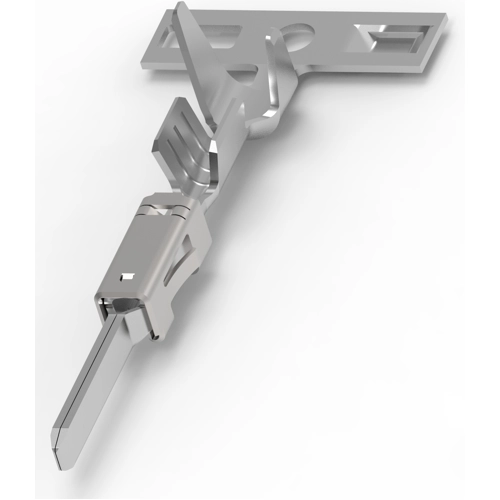

Tab, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 963904-1
Order No.: 36P3297
EAN: 4099889644197
MPN:
963904-1
Unit Price (€ / pc.)
0.1785 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
17.85 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1785 €
250 pcs.
0.1642 €
500 pcs.
0.1535 €
1000 pcs.
0.1380 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacts for motor vehicles, 963904-1, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Wire Type: Copper, Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 20 - 18 AWG, Wire Size: 0.5 - 1 mm², Wire Size Search: 17 AWG, 18 AWG, 20 AWG, Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Insulation Diameter: 1.4 - 2.1 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-17 | |
| contact surface | tin-plated | |
| Version | tab | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.5-1.0 mm² | |
| Insulation diameter | 1.4-2.1 mm | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
