963900-2 | AMP

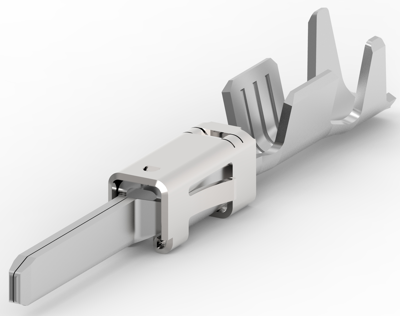

Tab, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 963900-2
Order No.: 36P3295
EAN: 4099889644173
MPN:
963900-2
Unit Price (€ / pc.)
0.1666 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
2,998.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
18000 pcs.
0.1666 €
Contacts for motor vehicles, 963900-2, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.6 mm, Mating Tab Thickness: .6 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 20 - 18 AWG, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, Wire Insulation Diameter: 1.4 - 2.1 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | Flachstecker | |
| AWG cross-section | AWG 20-17 | |
| Insulation diameter | 1,4-2,1 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupfer-Eisen-Legierung | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,5-1,0 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
