962876-3 | AMP

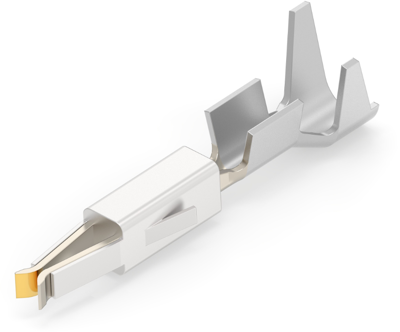

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, gold-plated, 962876-3
Order No.: 36P3316
EAN: 4099889644357
MPN:
962876-3
Unit Price (€ / pc.)
0.2083 € *
Available in 5 Days: 152,000 pcs. - if ordered today
Contacts for motor vehicles, 962876-3, AMP
Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.6 mm, Mating Tab Thickness: .6 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, Wire Insulation Diameter: 1.4 - 2.1 mm, 2.8 mm, 140 °C, Operating Temperature Range: -40 - 140 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | phosphor bronze | |
| Contact connection | crimp connection | |
| Insulation diameter | 1.4-2.1 mm | |
| contact surface | gold-plated | |
| Version | receptacle | |
| AWG cross-section | AWG 20-17 | |
| Cable cross-section | 0.5-1.0 mm² | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
