962862-1 | AMP

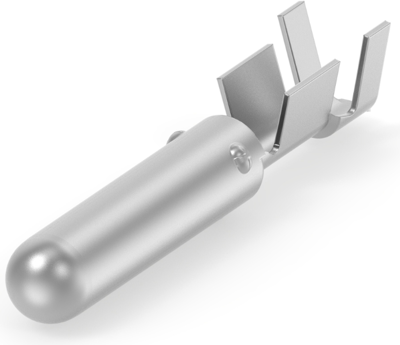

Pin contact, 1.0-2.5 mm², AWG 17-13, crimp connection, tin-plated, 962862-1
Order No.: 36P2480
EAN: 4099889643930
MPN:
962862-1
Unit Price (€ / pc.)
0.1666 € *
Standard delivery time from the manufacturer is: 25 Weeks
Contacts for motor vehicles, 962862-1, AMP
Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Pin Diameter: 4 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 17 - 13 AWG, Wire Size: 1 - 2.5 mm², Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², 2.5 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, Wire Insulation Diameter: 2.2 - 3 mm, 125 °C, 130 °C, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 17-13 | |
| Cable cross-section | 1.0-2.5 mm² | |
| Insulation diameter | 2.2-3 mm | |
| contact surface | tin-plated | |
| Version | pin contact | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
