936606-1 | AMP

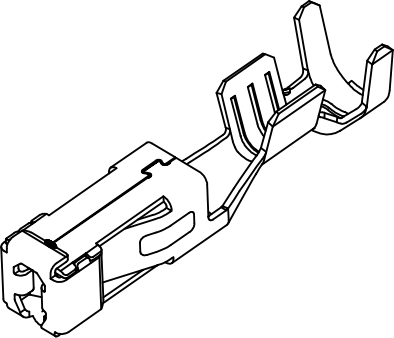

Receptacle, 1.0-2.0 mm², AWG 17-14, crimp connection, tin-plated, 936606-1
Unit Price (€ / pc.)
0.1761 € *
Standard delivery time from the manufacturer is: 21 Weeks
Contacts for motor vehicles, 936606-1, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 1 - 2 mm², Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², 2.5 mm², Wire Insulation Diameter: 2.2 - 3 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 17-14 | |
| Contact material | copper alloy | |
| Cable cross-section | 1.0-2.0 mm² | |
| Insulation diameter | 2.2-3 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
