929962-1 | AMP

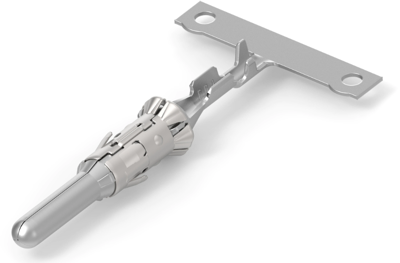

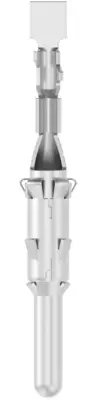

Pin contact, 0.2-0.4 mm², AWG 24-22, crimp connection, tin-plated, 929962-1
Order No.: 36P2474
EAN: 4099889643886
MPN:
929962-1
Unit Price (€ / pc.)
0.3094 € *
Standard delivery time from the manufacturer is: 16 Weeks
Contacts for motor vehicles, 929962-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Pin Diameter: 2.5 mm, Automotive terminal Interface Plating: Tin (Sn), Contact Termination Area Plating Material: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.2 - 0.4 mm², Wire Size Search: 0.2 mm², 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², 0.4 mm², Wire Size Search: 21 AWG, 22 AWG, 23 AWG, Wire Insulation Diameter: 1.15 - 1.6 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| contact surface | tin-plated | |
| AWG cross-section | AWG 24-22 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.2-0.4 mm² | |
| Version | pin contact | |
| Contact material | copper-nickel alloy | |
| Insulation diameter | 1.15-1.6 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369040 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
