929937-1 | AMP
Receptacle, 1.0-2.5 mm², AWG 17-13, crimp connection, tin-plated, 929937-1
Order No.: 36P3491
EAN: 4099889645538
MPN:
929937-1
Unit Price (€ / pc.)
0.2332 € *
Available: 1,792 pcs.
Available in 5 Days: 3,700 pcs. - if ordered today
Total Price:
23.32 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2332 €
250 pcs.
0.2154 €
500 pcs.
0.1999 €
1000 pcs.
0.1809 €
*incl. VAT plus shipping costs
Subject to prior sale

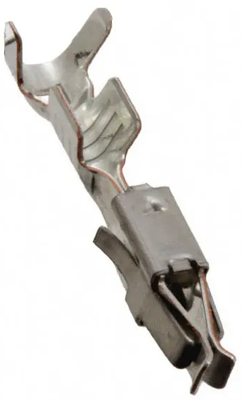

Socket contact, 929937-1, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 17 - 13 AWG, Wire Size: 1 - 2.5 mm², Wire Size Search: 1 mm², 1.25 mm², 1.5 mm², 2 mm², 2.5 mm², Wire Size Search: 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, Wire Insulation Diameter: 1.9 - 3 mm, 2.7 - 3 mm, 3.4 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 130 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | copper-iron alloy | |
| Cable cross-section | 1.0-2.5 mm² | |
| Version | receptacle | |
| AWG cross-section | AWG 17-13 | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Contact connection | crimp connection | |
| Insulation diameter | 2.7-3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
| Original Packaging | Reel with 3,700 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
