928930-2 | AMP
Tab, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 928930-2
Unit Price (€ / pc.)
0.1428 € *
Available in 5 Days: 20,000 pcs. - if ordered today
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1428 €
50 pcs.
0.1321 €
100 pcs.
0.1226 €
250 pcs.
0.1119 €
*incl. VAT plus shipping costs
Subject to prior sale

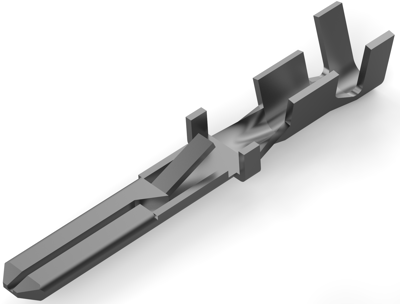

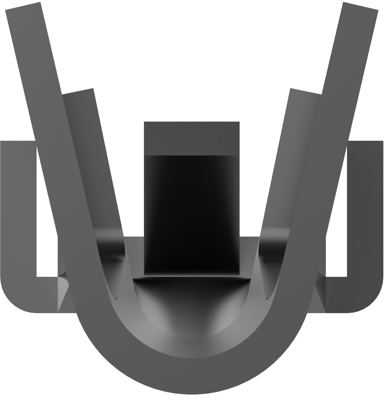

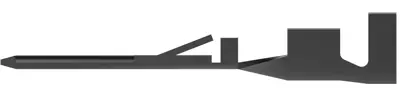

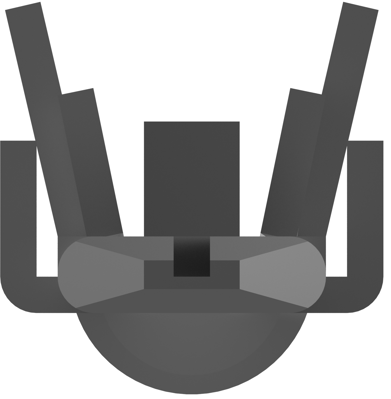

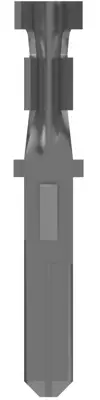

Uninsulated flat plug, 928930-2, AMP
Features
- Quick application on the conductor with the use of the right tool
- Locking lances for secure hold in the housing
- Precisely controlled crimp specifications for consistent reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-17 | |
| Contact material | copper zinc alloy | |
| Contact connection | crimp connection | |
| contact surface | tin-plated | |
| Version | tab | |
| Cable cross-section | 0.5-1.0 mm² | |
| Contact surface mating area | tin-plated | |
| Insulation diameter | 1.4-2.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
