928845-1 | AMP
Receptacle, 0.34-0.88 mm², AWG 22-18, crimp connection, 928845-1
Unit Price (€ / pc.)
0.1583 € *
Available in 5 Days: 7,500 pcs. - if ordered today
Total Price:
15.83 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1583 €
250 pcs.
0.1464 €
500 pcs.
0.1357 €
1000 pcs.
0.1226 €
*incl. VAT plus shipping costs
Subject to prior sale

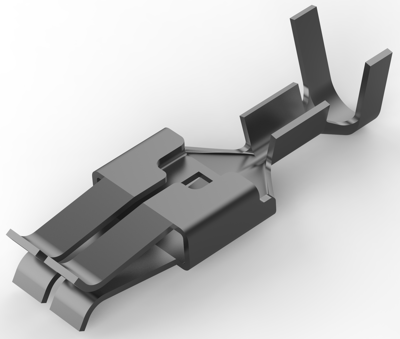

Connector contact, 928845-1, AMP
Discrete Wire Type: Stranded, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Single Wire Sealing System: No, Compatible With Wire & Cable Type: Discrete Wire, Test Current: 12 A, Operating Voltage: 240 VAC, Contact Design: Standard Flat, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Wire Contact Termination Area Plating Material: Pre-Tin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Double Lock Plate, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.9 - 3.8 mm, Wire Size: 22 - 18 AWG, Wire Size: 0.34 - 0.88 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 22-18 | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.34-0.88 mm² | |
| Insulation diameter | 1.9-3.8 mm | |
| Contact material | copper zinc alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
