928820-1 | AMP

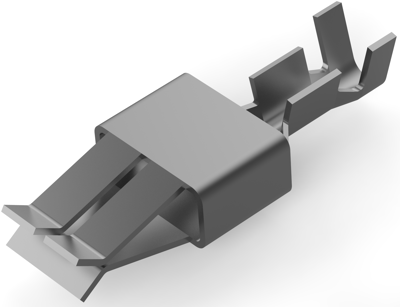

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 928820-1
Unit Price (€ / pc.)
0.1761 € *
Available in 5 Days: 3,000 pcs. - if ordered today
Total Price:
17.61 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1761 €
250 pcs.
0.1630 €
500 pcs.
0.1511 €
1000 pcs.
0.1369 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacts for motor vehicles, 928820-1, TE Connectivity
Sealable: No, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 5.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 20 - 17 AWG, Wire Size: 0.5 - 1 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-17 | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.5-1.0 mm² | |
| Insulation diameter | 1.4-2.3 mm | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
