928794-2 | AMP

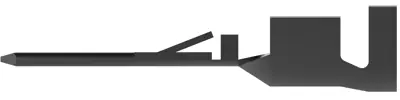

Pin contact, 1.0-2.8 mm², AWG 17-13, crimp connection, tin-plated, 928794-2
Unit Price (€ / pc.)
0.2761 € *
Available: 1,550 pcs.
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2761 €
10 pcs.
0.2559 €
25 pcs.
0.2380 €
50 pcs.
0.2154 €
*incl. VAT plus shipping costs
Subject to prior sale
Quick disconnects, 928794-2, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: CuZn30, Crimp Type: F-Crimp, Locking Lance Height: 1.2 mm, Overall Length: 22.5 mm, Wire Size: 17 - 13 AWG, Wire Size: 1 - 2.8 mm², Wire Size: 2048 - 5180 CMA, Quick Disconnect Mating Tab Width: 2.8 mm Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 17-13 | |
| contact surface | tin-plated | |
| Version | pin contact | |
| Contact connection | crimp connection | |
| Cable cross-section | 1.0-2.8 mm² | |
| Insulation diameter | 1.8-2.9 mm | |
| Contact material | copper zinc alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
