928781-2 | AMP
Tab, 1.0-2.8 mm², AWG 17-13, crimp connection, tin-plated, 928781-2
Unit Price (€ / pc.)
0.1880 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
18.80 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1880 €
250 pcs.
0.1737 €
500 pcs.
0.1618 €
1000 pcs.
0.1464 €
*incl. VAT plus shipping costs
Subject to prior sale

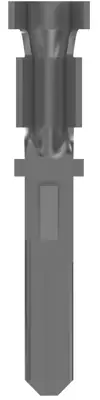

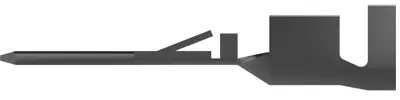

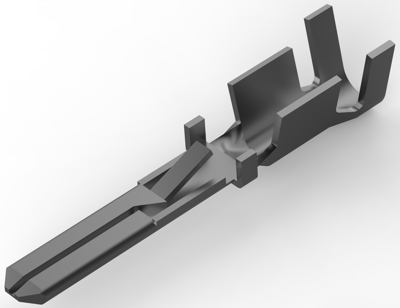

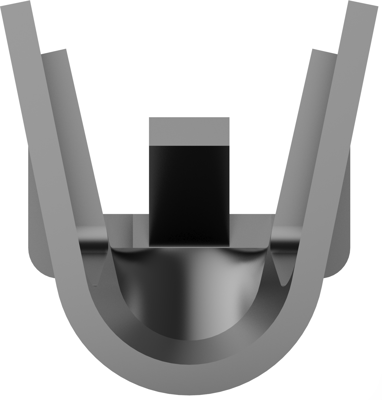

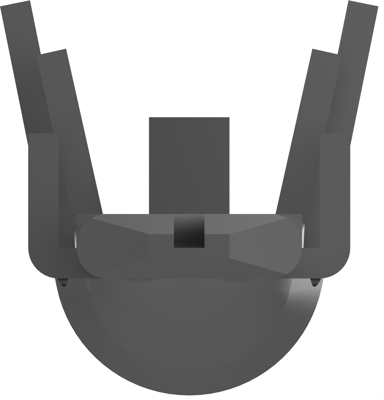

Rectangular power contact, 928781-2, AMP
Rectangular power contact, JPT series, tinned contact, 17 AWG
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 17-13 | |
| contact surface | tin-plated | |
| Version | tab | |
| Contact connection | crimp connection | |
| Cable cross-section | 1.0-2.8 mm² | |
| Insulation diameter | 1.8-2.9 mm | |
| Contact material | copper zinc alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
