927844-2 | AMP

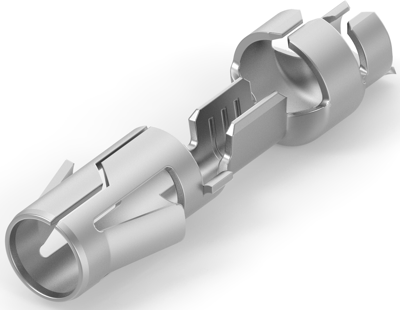

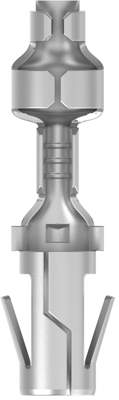

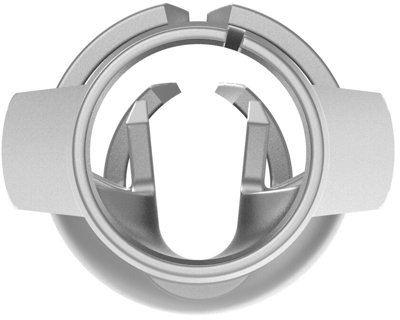

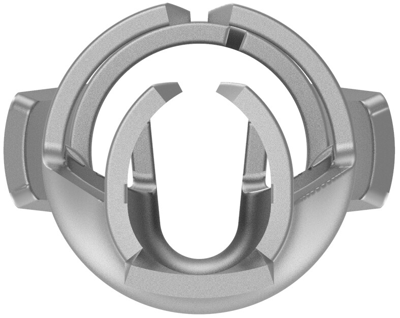

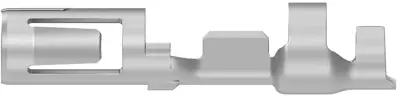

Name: Receptacle, 0.5-0.1 mm², AWG 20-17, crimp connection, 927844-2
Brand: AMP
SKU: 72P2354
Availability: InStock

Receptacle, 0.5-0.1 mm², AWG 20-17, crimp connection, 927844-2

Order No.: 72P2354

EAN: 4099889987485

MPN:

927844-2

Image may differ

Key Specification:

Version receptacle

Cable cross-section 0.5-0.1 mm²

AWG cross-section AWG 20-17

Contact connection crimp connection

Contact material phosphor bronze

Unit Price (€ / pc.)

0.2618 € *

Available in 5 Days: 7,000 pcs. - if ordered today

Total Price:

1.31 € *

Price list

Quantity

Price per unit*

5 pcs.

0.2618 €

10 pcs.

0.2428 €

25 pcs.

0.2261 €

50 pcs.

0.2047 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Connector contact, Socket, Tin, Pre-Tin, 250 VAC, Locking lance contact retention, Discrete wire, 20-17 AWG Wire size.

Technical specifications

Filter	Property	Value
	Contact surface mating area	tin-plated
	AWG cross-section	AWG 20-17
	Version	receptacle
	Contact connection	crimp connection
	Contact surface Connection range	tin-plated
	Cable cross-section	0.5-0.1 mm²
	Insulation diameter	1.4-2.3 mm
	Contact material	phosphor bronze
