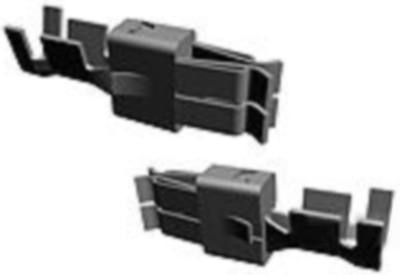

927833-1 | AMP
Receptacle, 1.5-2.5 mm², AWG 17-14, crimp connection, tin-plated, 927833-1
Order No.: 36P3572
EAN: 4099889646122
MPN:
927833-1
Unit Price (€ / pc.)
0.2654 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
0.27 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2654 €
10 pcs.
0.2463 €
25 pcs.
0.2297 €
50 pcs.
0.2094 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket contact, 927833-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 5.8 mm,6.3 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 17 - 14 AWG, Wire Size: 1 - 2.5 mm², Wire Size Search: 1 mm², 1.5 mm², 2 mm², 2.5 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, Wire Insulation Diameter: 2.7 - 3.7 mm, Insulation Requirement: Uninsulated, Operating Temperature : -40 - 130 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 17-14 | |
| Contact material | copper-iron alloy | |
| Cable cross-section | 1.5-2.5 mm² | |
| Insulation diameter | 2.7-3.7 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
