927771-1 | AMP
Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, tin-plated, 927771-1
Order No.: 36P3416
EAN: 4099889645002
MPN:
927771-1
Unit Price (€ / pc.)
0.2035 € *
Available: 4,390 pcs.
Total Price:
20.35 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2035 €
250 pcs.
0.1880 €
500 pcs.
0.1737 €
1000 pcs.
0.1571 €
*incl. VAT plus shipping costs
Subject to prior sale

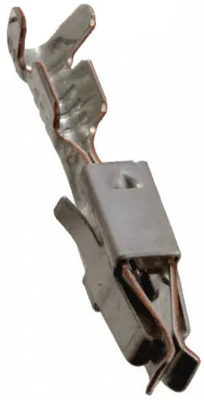

Socket contact, 927771-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 20 - 17 AWG, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 1.4 - 2.3 mm, Insulation Requirement: Uninsulated,, Operating Temperature Range: -40 - 130 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-17 | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.5-1.0 mm² | |
| Insulation diameter | 1.4-2.3 mm | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
