927766-3 | AMP

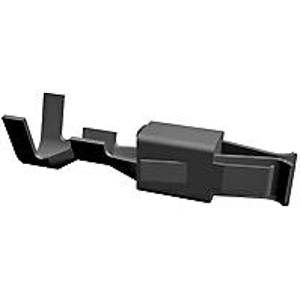

Receptacle, 1.0-2.5 mm², AWG 17-13, crimp connection, tin-plated, 927766-3
Order No.: 36P3413
EAN: 4099889644975
MPN:
927766-3
Unit Price (€ / pc.)
0.2297 € *
Available in 5 Days: 7,500 pcs. - if ordered today
Total Price:
861.26 € *
Price list
Quantity
Price per unit*
3750 pcs.
0.2297 €
7500 pcs.
0.2059 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacts for motor vehicles, 927766-3, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 1 - 2.5 mm², Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², 2.5 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, Wire Insulation Diameter: 2.2 - 3 mm, 2.7 - 3 mm, 3.4 mm, 125 °C, 130 °C, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| AWG cross-section | AWG 17-13 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 1.0-2.5 mm² | |
| Version | receptacle | |
| Contact material | phosphor bronze | |
| Insulation diameter | 2.2-3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 3,750 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
