926988-1 | AMP

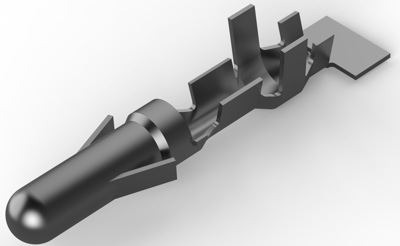

Pin contact, 0.52-1.65 mm², AWG 20-15, crimp connection, 926988-1
Unit Price (€ / pc.)
0.2440 € *
Available in 5 Days: 5,000 pcs. - if ordered today
Total Price:
609.88 € *
Price list
Quantity
Price per unit*
2500 pcs.
0.2440 €
5000 pcs.
0.2321 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 926988-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 17 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 3.56 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 15 AWG, Wire Size: 0.52 - 1.65 mm², Accepts Wire Insulation Diameter Range: 1.02 - 2.4 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-15 | |
| Contact material | brass | |
| Contact connection | crimp connection | |
| Version | pin contact | |
| Cable cross-section | 0.52-1.65 mm² | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Insulation diameter | 1.02-2.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
