926917-1 | AMP

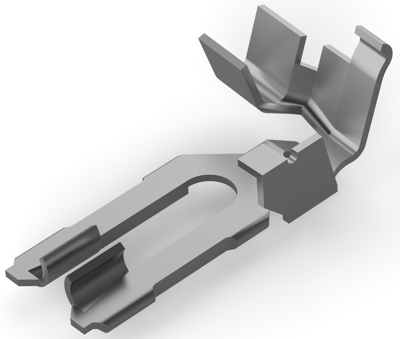

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, 926917-1
Order No.: 35P4062
EAN: 4099889637229
MPN:
926917-1
Unit Price (€ / pc.)
0.2023 € *
Available in 5 Days: 7,000 pcs. - if ordered today
Total Price:
708.05 € *
Price list
Quantity
Price per unit*
3500 pcs.
0.2023 €
7000 pcs.
0.1904 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector contact, 926917-1, AMP
Discrete Wire Type: Stranded, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Termination Area Plating Thickness: 1 - 2 µm, Contact Type: Receptacle, Contact Mating Area Plating Material: Pre-Tin, Wire Contact Termination Area Plating Material: Pre-Tin, Contact Retention Within Housing: With, Termination End Plating Material: Pre-Tin, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 2 - 2.5 mm, Wire Size: 20 - 17 AWG, Wire Size: 0.5 - 1 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-17 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.5-1.0 mm² | |
| Insulation diameter | 2-2.5 mm | |
| Contact surface mating area | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | US |
| Original Packaging | Reel with 3,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
