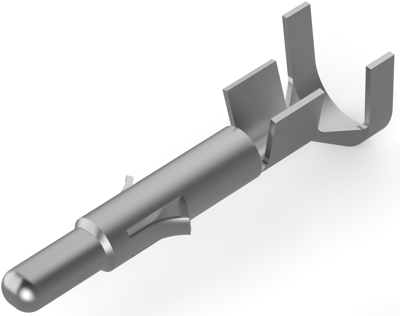

926902-3 | AMP
Pin contact, 1.5-2.5 mm², AWG 16-14, crimp connection, 926902-3
Unit Price (€ / pc.)
0.2678 € *
Available in 5 Days: 5,313 pcs. - if ordered today
Connector contact, 926902-3, AMP
Discrete Wire Type: Stranded, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Type: Pin, Contact Mating Area Plating Material: Pre-Tin, Wire Contact Termination Area Plating Material: Pre-Tin, Contact Retention Within Housing: With, Contact Base Material: CuSn4, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 3.3 - 5.1 mm, Wire Size: 16 - 14 AWG, Wire Size: 1.5 - 2.5 mm², Operating Temperature Range: -55 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16-14 | |
| Contact material | copper alloy | |
| Cable cross-section | 1.5-2.5 mm² | |
| Insulation diameter | 3.3-5.1 mm | |
| Contact surface mating area | tin-plated | |
| Version | pin contact | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
