926901-3 | AMP

Receptacle, 1.31-2.63 mm², AWG 16-13, crimp connection, tin-plated, 926901-3

Order No.: 71F6315
EAN: 4099889662146
MPN:
926901-3
0-0926901-3
926901-3 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.2321 € *
Available: 320 pcs.
Available in 5 Days: 2,125 pcs. - if ordered today
Total Price:
1.16 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2321 €
10 pcs.
0.2035 €
50 pcs.
0.1725 €
100 pcs.
0.1416 €
*incl. VAT plus shipping costs
Subject to prior sale

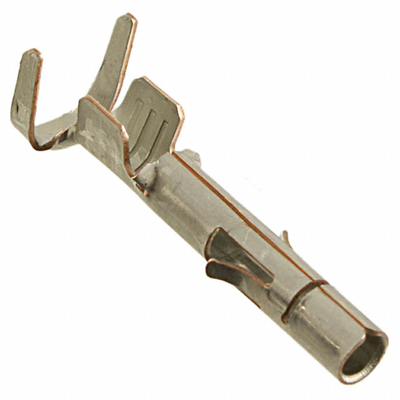

Female contact for general-purpose Mate-N-Lok connectors.

Contact material: phosphor bronze. Contact finish: tinned.

Technical attributes (type, for wire cross-section, insulation diameter, dimension L, contact finish): 0-0926901-3, 1.5 to 2.5mm²², 3.3 to 5.1 mm, L 19.8 mm, tinned

Technical specifications
Version receptacle
Cable cross-section 1.31-2.63 mm²
AWG cross-section AWG 16-13
Contact connection crimp connection
Contact material phosphor bronze
Contact surface mating area tin-plated
contact surface tin-plated
Contact surface Connection range tin-plated
Insulation diameter 3.3-5.08 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
