926868-1 | AMP

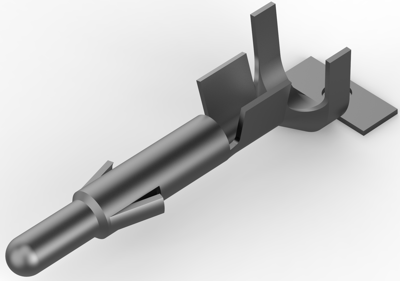

Pin contact, 1.5-2.5 mm², AWG 16-13, crimp connection, 926868-1
Unit Price (€ / pc.)
0.1142 € *
Available in 5 Days: 5,000 pcs. - if ordered today
Power contact, 926868-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Contact Mating Area Plating Material: Pre-Tin, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.06 mm, Contact Base Material: Brass, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 16 - 13 AWG, Wire Size: 1.5 - 2.5 mm², Accepts Wire Insulation Diameter Range: 3.3 - 5.08 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16-13 | |
| Contact surface mating area | tin-plated | |
| Contact connection | crimp connection | |
| Version | pin contact | |
| Contact material | brass | |
| Cable cross-section | 1.5-2.5 mm² | |
| Insulation diameter | 3.3-5.08 mm | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
