867052-2 | AMP
Plug-in socket, 0.5 mm², AWG 20, crimp connection, 867052-2
Unit Price (€ / pc.)
0.9163 € *
Standard delivery time from the manufacturer is: 41 Weeks

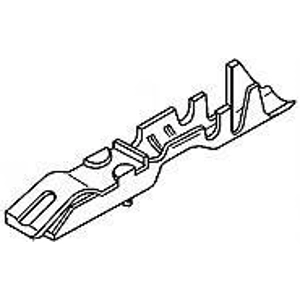

Socket contact, 867052-2, TE Connectivity
Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 00.97 - 1.57 mm, Wire Size: 20 AWG, Wire Size: 1021 CMA, Wire Size: 0.5 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.5 mm² | |
| Insulation diameter | 0.97-1.57 mm | |
| Contact surface mating area | gold-plated | |
| Version | plug-in socket | |
| Contact connection | crimp connection | |
| Contact surface Connection range | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
