794957-2 | AMP

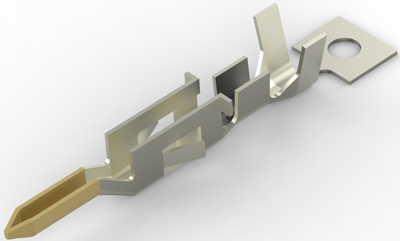

Pin contact, 0.13-0.33 mm², AWG 26-22, crimp connection, 794957-2
Order No.: 35P5583
EAN: 4099889638592
MPN:
794957-2
Unit Price (€ / pc.)
0.1714 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Power contact, 794957-2, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Fabrication: Stamped & Formed, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 9 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 26 - 22 AWG, Wire Size: 0.13 - 0.33 mm², Accepts Wire Insulation Diameter Range: 1.19 - 1.75 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 26-22 | |
| Insulation diameter | 1.19-1.75 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.13-0.33 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
