794955-2 | AMP

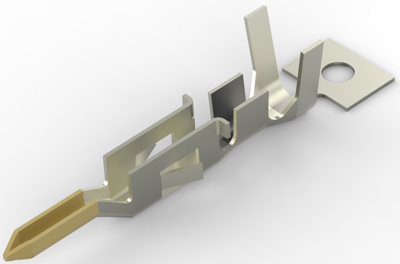

Pin contact, 0.3-0.82 mm², AWG 22-18, crimp connection, 794955-2
Unit Price (€ / pc.)
0.2011 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
2,111.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10500 pcs.
0.2011 €
Power contact, 794955-2, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Fabrication: Stamped & Formed, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 9 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.3 - 0.82 mm², Accepts Wire Insulation Diameter Range: 1.5 - 3.1 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | Stiftkontakt | |
| AWG cross-section | AWG 22-18 | |
| Insulation diameter | 1,5-3,1 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | vergoldet | |
| Cable cross-section | 0,3-0,82 mm² |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
