794222-3 | AMP

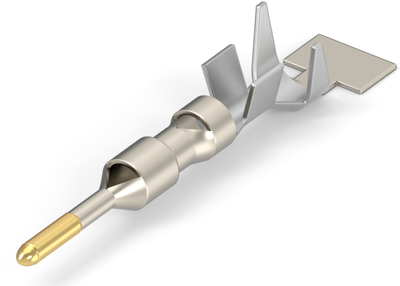

Pin contact, 0.5-1.4 mm², AWG 20-16, crimp connection, 794222-3
Order No.: 34P9729
EAN: 4099889636222
MPN:
794222-3
Unit Price (€ / pc.)
0.2773 € *
Available: 0 pcs.
Available in 5 Days: 13,850 pcs.
Leadtime: 1 Week **
Connector contact, 794222-3, AMP
Discrete Wire Type: Stranded, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Underplating Material: Nickel, Contact Type: Pin, Contact Mating Area Plating Material: Gold, Wire Contact Termination Area Plating Material: Gold, Contact Retention Within Housing: Without, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 2 - 3.2 mm, Wire Size: 20 - 16 AWG, Wire Size: 0.5 - 1.4 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 20-16 | |
| Insulation diameter | 2-3.2 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.5-1.4 mm² |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
