776349-1 | AMP

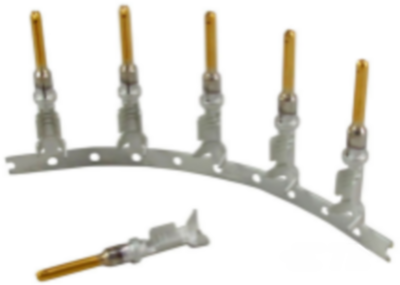

Pin contact, 0.5-0.75 mm², AWG 20-18, crimp connection, gold-plated, 776349-1
Unit Price (€ / pc.)
0.3927 € *
Available in 5 Days: 52,000 pcs. - if ordered today
Total Price:
1,570.80 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.3927 €
16000 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacts for motor vehicles, 776349-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Pin, Mating Pin Diameter: 1.59 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 20 - 18 AWG, Wire Size: 0.5 - 0.75 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², Wire Size Search: 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 2.26 - 3.32 mm, Operating Temperature Range: -40 - 120 °C .
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-18 | |
| Contact material | copper alloy | |
| Cable cross-section | 0.5-0.75 mm² | |
| Insulation diameter | 2.26-3.32 mm | |
| contact surface | gold-plated | |
| Version | pin contact | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
