770987-1 | AMP
Pin contact, 0.3-0.9 mm², AWG 22-18, crimp connection, tin-plated, 770987-1
Unit Price (€ / pc.)
0.1607 € *
Available: 0 pcs.
Available in 5 Days: 11,008 pcs.
Leadtime: 18 Weeks **
Total Price:
321.30 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.1607 €
4000 pcs.
0.1392 €
*incl. VAT plus shipping costs
**Subject to prior sale

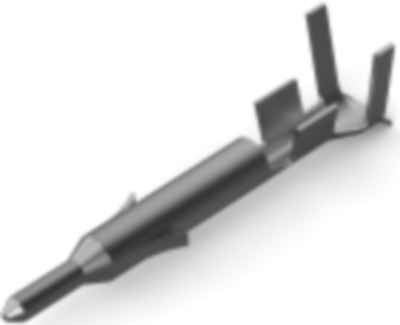

Pin contact, 770987-1, AMP
Power Contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 9.5 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.3 - 0.9 mm², Accepts Wire Insulation Diameter Range: 1.5 - 2.39 mm, Operating Temperature Range: -55 - 105 °C
Technical specifications
| Version | Stiftkontakt | |
| Cable cross-section | 0,3-0,9 mm² | |
| AWG cross-section | AWG 22-18 | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface mating area | verzinnt | |
| contact surface | verzinnt | |
| Contact surface Connection range | verzinnt | |
| Insulation diameter | 1,5-2,39 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
