770902-4 | AMP

Receptacle, 0.12-0.4 mm², AWG 26-22, crimp connection, 770902-4

Order No.: 34P9641
EAN: 4099889635836
MPN:
770902-4

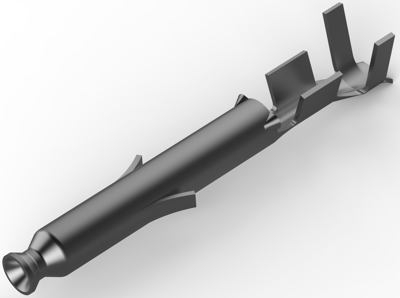

770902-4 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.0738 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
2,065.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
28000 pcs.
0.0738 €

Power contact, 770902-4, AMP

Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 11.2 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 26 - 22 AWG, Wire Size: 0.12 - 0.4 mm², Accepts Wire Insulation Diameter Range: 1.19 - 1.75 mm, Operating Temperature Range: -55 - 105 °C.

Technical specifications
Contact surface mating area tin-plated
AWG cross-section AWG 26-22
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 0.12-0.4 mm²
Version receptacle
Contact material phosphor bronze
Insulation diameter 1.19-1.75 mm
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
