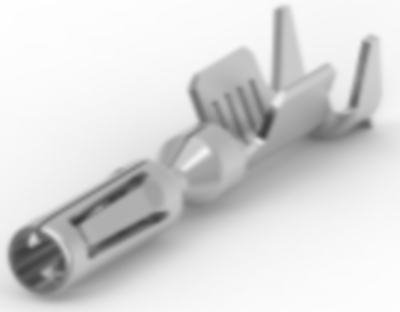

770854-3 | AMP
Receptacle, 0.5-1.5 mm², AWG 20-15, crimp connection, gold-plated, 770854-3
Unit Price (€ / pc.)
0.4998 € *
Available: 525 pcs.
Available in 5 Days: 6,510 pcs. - if ordered today
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4641 €
25 pcs.
0.4284 €
50 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket contact, 770854-3, TE Connectivity
Receptacle Style: 180°, Sealable: No, Crimp Type: F-Crimp, Terminal & Splice Type: Socket, Mating Pin Diameter: 1.3 mm, Interface Plating: Gold (Au), Termination Method: Crimp, Wire Size: 16 - 20 AWG, Wire Size: 0.5 - 1.5 mm², Wire Size Search: 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², Wire Insulation Diameter: 1.7 - 2.7 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-15 | |
| Contact connection | crimp connection | |
| Insulation diameter | 1.7-2.7 mm | |
| Contact material | copper alloy | |
| Cable cross-section | 0.5-1.5 mm² | |
| contact surface | gold-plated | |
| Version | receptacle |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
