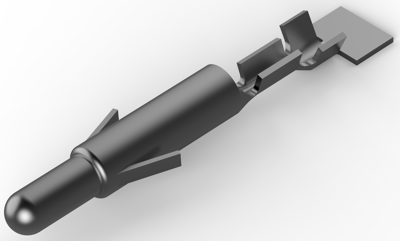

770672-1 | AMP
Pin contact, 0.05-0.13 mm², AWG 30-26, crimp connection, 770672-1
Unit Price (€ / pc.)
0.2094 € *
Available in 5 Days: 7,095 pcs. - if ordered today
Power contact, 770672-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 30 - 26 AWG, Wire Size: 0.05 -0.13 mm², Accepts Wire Insulation Diameter Range: 0.81 - 1.45 mm, Operating Temperature Range: -55 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| AWG cross-section | AWG 30-26 | |
| Contact surface Connection range | tin-plated | |
| Contact material | brass | |
| Insulation diameter | 0.81-1.45 mm | |
| Contact surface mating area | tin-plated | |
| Version | pin contact | |
| Cable cross-section | 0.05-0.13 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
