770246-3 | AMP

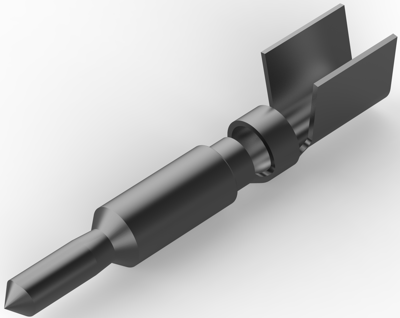

Pin contact, 3.0-6.0 mm², AWG 12-10, crimp connection, 770246-3
Unit Price (€ / pc.)
0.6069 € *
Available in 5 Days: 43,314 pcs. - if ordered today
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6069 €
10 pcs.
0.5593 €
25 pcs.
0.5236 €
50 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin contact, 770246-3, AMP
Power Contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 7 A, Contact Type: Pin, Contact Retention Within Housing: Without, Mating Pin Diameter: 2.18 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 12 - 10 AWG, Wire Size: 3 - 6 mm², Accepts Wire Insulation Diameter Range: 5.08 mm, Operating Temperature Range: -55 - 120 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12-10 | |
| Contact surface mating area | tin-plated | |
| Contact connection | crimp connection | |
| Version | pin contact | |
| Contact material | phosphor bronze | |
| Cable cross-section | 3.0-6.0 mm² | |
| Insulation diameter | 5.08 mm | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
