770210-1 | AMP

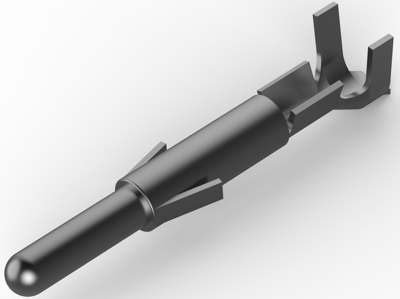

Pin contact, 0.2-0.82 mm², AWG 24-18, crimp connection, 770210-1
Unit Price (€ / pc.)
0.1190 € *
Standard delivery time from the manufacturer is: 22 Weeks
Power contact, 770210-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 - 0.82 mm², Accepts Wire Insulation Diameter Range: 1.52 - 3.3 mm, Operating Temperature Range: -55 - 125 °C.
Technical specifications
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 24-18 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.2-0.82 mm² | |
| Version | pin contact | |
| Contact material | brass | |
| Insulation diameter | 1.52-3.3 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
