770144-6 | AMP

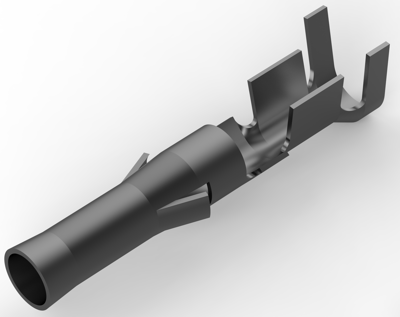

Receptacle, 0.5-2.0 mm², AWG 20-14, crimp connection, 770144-6
Order No.: 34P6859
EAN: 4099889635256
MPN:
770144-6
Unit Price (€ / pc.)
0.1511 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
15.11 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1511 €
250 pcs.
0.1392 €
500 pcs.
0.1297 €
1000 pcs.
0.1166 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 770144-6, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 13 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 2.36 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 2 mm², Accepts Wire Insulation Diameter Range: 3.56 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | tin-plated | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.5-2.0 mm² | |
| AWG cross-section | AWG 20-14 | |
| Contact material | phosphor bronze | |
| Insulation diameter | 3.56 mm | |
| Contact connection | crimp connection | |
| Version | receptacle |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
