745254-2 | AMP

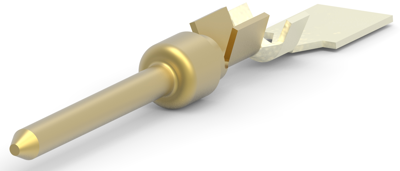

Pin contact, 0.15-0.4 mm², AWG 26-22, crimp connection, 745254-2
Unit Price (€ / pc.)
0.1999 € *
Available in 5 Days: 36,000 pcs. - if ordered today
Total Price:
2,399.04 € *
Price list
Quantity
Price per unit*
12000 pcs.
0.1999 €
24000 pcs.
0.1964 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub connector contact, 745254-2, AMP
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Pin Diameter: 1.02 mm, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.01 - 1.27 mm, Wire Size: 26 - 22 AWG, Wire Size: 0.15 - 0.4 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 26-22 | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.15-0.4 mm² | |
| Version | pin contact | |
| Contact material | brass | |
| Insulation diameter | 1.01-1.27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
